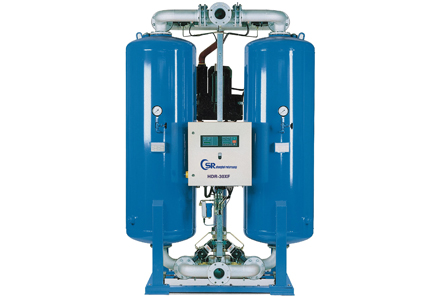

High efficient reliable Heated desiccant air dryer

Dew point:-20 °C - -40°C

ISO, CE certificated With world-top activated Aluminum & Molecular contents.

1.2m3/min~600m3/min customized 6-10bar pressure with less air consumption.

Features of Heatless desiccant air dryer Air Dryer:

Capacity: 1.2m3/min~160m3/min Working Pressure: ≤10bar
Max.inlet temp: 45°C

Max Ambient Temp:50°C
Min.Ambient Temp: 5°C

Refrigerant:Activated Aluminum &Molecular Siere

Dew Point: -20°C - -40°C

Key benefits of Shanghai rotorcomp desiccant air dryer

• Longer life span of your equipment and distribution network due to less wear
• Greater productivity and lower maintenance costs thanks to less breakdowns
• Multiport inlet and outlet which ensures fast and easy installation
• Higher final product quality
• Increased reliability and reduced risk for leaks
• Energy savings with lower pressure drops
• Pressure dew point sensor

Description:

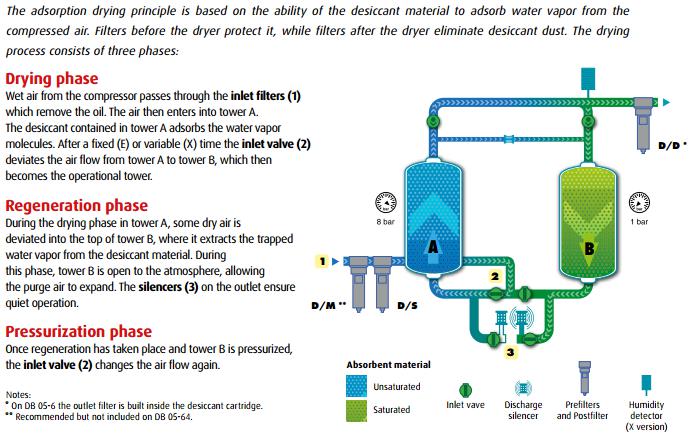

Micro heat regenerative adsorption pressure desiccant dryer with no heat regeneration principle is basically the same, the difference is that it used to regenerate the low-pressure dry air before re-entering the regeneration tower after receipt of the desiccant dehumidification in the structure increased heating device, on the increase in the regeneration process receipt and cold blowing processes.
slightly hot regenerated adsorption dryer advantage of less energy waste, only 6%. Switching cycle is long and less engine wear, improved equipment reliability. It is the final product gas dryness ratio heatless with even better.

Shanghai Rotorcomp Screw Compressor Co., Ltd  founded in 1999, our company was a manufacturer of piston air compressors from 1985-1999. After 2000 our company headquarters moved to the international metropolis Shanghai and focused on screw air compressors, pressure vessel, refrigeration dryer, adsorption dryer and air filters with the support of Rotorcomp Verdichter Gmbh in German.

Shanghai Rotorcomp Screw Compressor Co. Ltd., Shanghai Ziqi Container Co.Ltd. have been cooperated with 2010 Beijing Nankou Railway Transit Machinery Co. Ltd., which belongs to China CNR Corporation Limited, as the strategic cooperation partner.

The Beijing Nankou company has processing equipment more than 100 sets, including large-scale precision equipment 90 sets and imported equipment 70 sets. Such as Hardinge double-ended grinder, Toshiba horizontal machining center, BW CNC vertical and horizontal machining center, Holroyd rotor profile grinder and Zeiss 3D measuring machine.

From 2017, we successfully develop the new generation oil-free air compressors with the ISO9001 certificate, ISO14001 certificate, energy-saving product certificate, OSHAS (Occupation Safety and Health management System) certificate, vonTUV certificate and CE Certificate. According to the Standard European Din40080, our air end and air compressors have won the praises of the customers over 45 countries worldwide.

Followed the principle and policy of " First-class Quality, First-class Service" Shanghai Rotorcomp insists on improving ourselves into a first-class supplier for the air compressor.
