Borehole Drilling Rig

Our KY series borehole drilling rig is an economical drilling solution. As a piece of advanced drilling equipment, it is constructed on the basis of foreign technologies. Various special designs have made this self-propelled drilling machinery suitable for surface mine. It can be used for the construction of railway, road, hydroelectric power station, building, as well as in the quarry and surface mine.

Equipped with our air compressor and DTH hammer, the borehole drilling rig can drill blastholes (such as pre-splitting blasting hole) and anchor cable holes in horizontal, vertical and inclined directions. The rock hardness should be in a proper range (F = 6-20). The hole diameter could be from 80mm to 140mm, while the economical drilling depth is from 10m to 25m.

Our KY100 low pressure crawler drilling rig, as an excellent rock drilling machine, has been specially designed. Its reliable and powerful components give the drilling crawler great drilling performance.

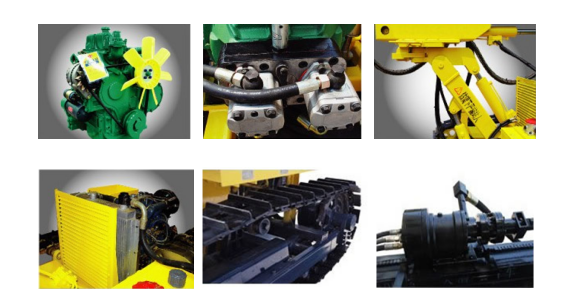

Feature
1. Powerful and reliable motor
A double cylinder diesel engine is used. It features high power output and great gradeability. The engine comes with a three level filtering device which consists of air inflow adjuster, desert air filter, and fuel filter. Thus the low pressure crawler drilling rig has strong adaptability to bad working environments. The engine's service life is also enhanced.

2. Flexible drill arm
The active drill boom can adjust the drilling angle and hole's height by controlling the stretching length of the oil cylinder. Thus the drilling ability and range are both extended.

3. Reliable hydraulic pump assembly
Two gear pumps are adopted for the oil supplying, making the low pressure crawler drilling rig much safer. The gear transmission and flexible coupling mechanism is used, so the structure is more compact, while the operation is more stable.

4. Reliable hydraulic system
An extra oil cooling device is installed to eliminate the oil's thermal influence to the system.

Specifications:

Recommended spare parts for KY100
