Shanghai Rotorcomp Screw Compressor Co., Ltd You Value Excellent Service &Products, We're Always There!
8 Years
| Ask Lasest Price | |
| Brand Name : | Shanghai Rotorcomp |
| Model Number : | RC-D48/08-S1 |
| Certification : | ISO.TUV,CE,GS |
| Price : | Negotiable |
| Payment Terms : | Western Union, T/T, L/C, D/P, D/A |
| Supply Ability : | 3,000 sets/per month |
| Delivery Time : | 15-20 working days |
Environmental Protection Oil Free Compressor With Super Silent Body Housing
Oil Free Compressor Features
Oil Free Compressor Advantages
1. Easy to move out the elements
Good substitute of small oil free screw compressor with lower cost of maintenance, and more simple structure with energy-saving performance in food&beverage,pharmaceutical,automobile,medical&chemical,prescion and electronic industry.
Advanced design for air cooling system better performance than other compressor 15-20%
Oil Free Compressor Parameters
| Model | Capacity(m3/min) | Power(kw) | In/outlet | Noise | Dimension | Weight |
| 8bar | Motor | dB(A) | L×W×H in mm | kg | ||
| RC-D04/08-S1 | 0.4 | 3.7 | 3/8 | 55 | 720×760×1150 | 220 |
| RC-D06/08-S1 | 0.6 | 5.5 | 3/8 | 60 | 720×760×1150 | 240 |
| RC-D12/08-S1 | 1.2 | 11 | 1/2 | 65 | 1250×760×1090 | 440 |
| RC-D18/08-S1 | 1.8 | 16.5 | 3/4 | 68 | 1250×760×1560 | 630 |
| RC-D24/08-S1 | 2.4 | 22 | 1 | 70 | 1250×1360×1090 | 820 |
| RC-D30/08-S1 | 3.0 | 27.5 | 1-1/2 | 72 | 1250×1360×1560 | 1010 |
| RC-D36/08-S1 | 3.6 | 33 | 1-1/2 | 75 | 1300×1380×1660 | 1200 |
| RC-D42/08-S1 | 4.2 | 38.5 | 2 | 78 | 1350×1460×1660 | 1280 |
| RC-D48/08-S1 | 4.8 | 44 | 2 | 78 | 1350×1460×1660 | 1360 |
| RC-D54/08-S1 | 5.4 | 49.5 | 2-1/2 | 81 | 1400×1520×1780 | 1480 |
| RC-D60/08-S1 | 6.0 | 55 | 2-1/2 | 81 | 1400×1520×1780 | 1600 |
| Note: |
| 1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail; |
| 2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail; |
3. Frequency converters (optional). 4. 1 year warranty, 2 years warranty for air end |

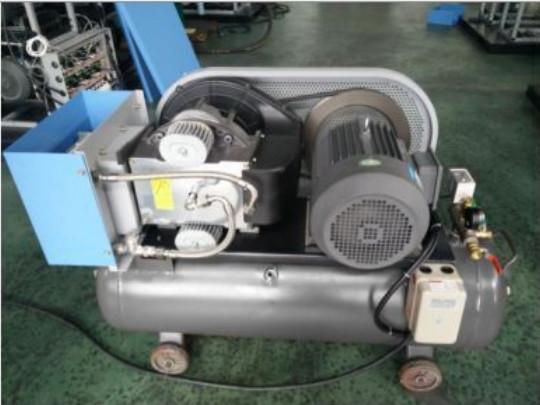

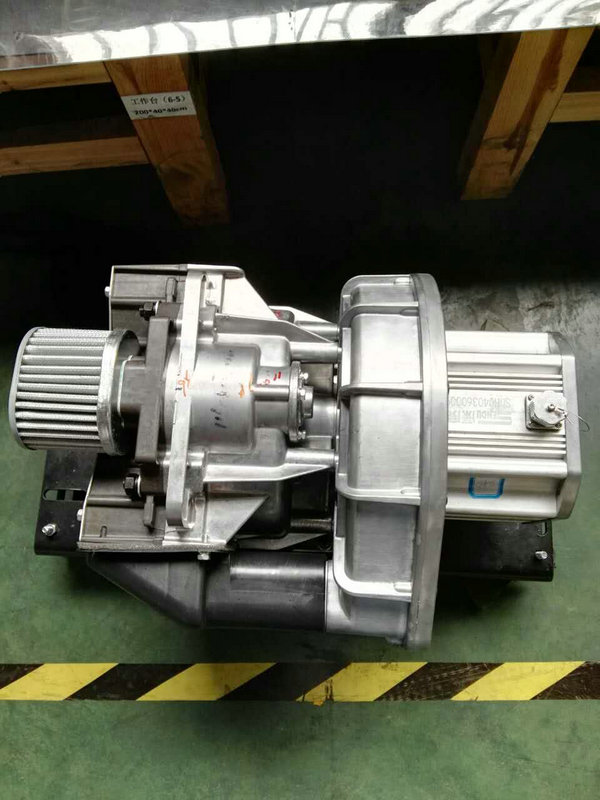

Oil Free Compressor Details
|
|
