    Air Cooling 4030rpm Screw Air Compressor

    Ask Lasest Price
    Brand Name : Shanghai Rotorcomp
    Model Number : LGFD-30
    Certification : ISO.TUV,CE,GS
    Price : negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100-2000sets/Month
    Delivery Time : 5-15 Working days
    • Product Details
    • Company Profile

    Air Cooling 4030rpm Screw Air Compressor

    Air Cooling 4030rpm Screw Air Compressor


    Applications

    rotary-screw compressor is a type of gas compressor that uses a rotary-type positive-displacement mechanism. They are commonly used to replace piston compressors where large volumes of high-pressure air are needed. Such as:

    • Sand blasting
    • General works air
    • Simple spray painting
    • Pneumatic tools
    • Dental laboratories
    • Medical equipment
    • food industry
    • Pharmaceuticals industry

    30KW air cooling compressor parameters


    ITEMUNITMODEL
    LGFD-30
    Free air deliverym3/min5.004.503.703.25
    Max. working pressureMPa0.81.01.31.5
    Compressor typeOil inject screw compressor
    Cooling typeAir cooling
    Driven typeBelt driven
    Inlet statusTemperature≤45
    PressureMPaAtmospheric pressure
    Relative humidity≤90%
    Noise LeveldB(A)≤72
    Residual oil contentppm≤2
    Drive rotor speedrpm4030365031002950
    Compressed air outlet temperatureAmbient temperature+10
    Cooling air flowm3/hr9200
    Control modeIntelligent controller
    Safety valve set pressureMPa0.881.101.431.60
    Lubricating oil volumeL30
    Lubricating oil brandROTORCOMP
    Compressed air outlet connectionG1-1/2
    DimensionLmm1500
    Wmm1000
    Hmm1320
    Net Weightkg780

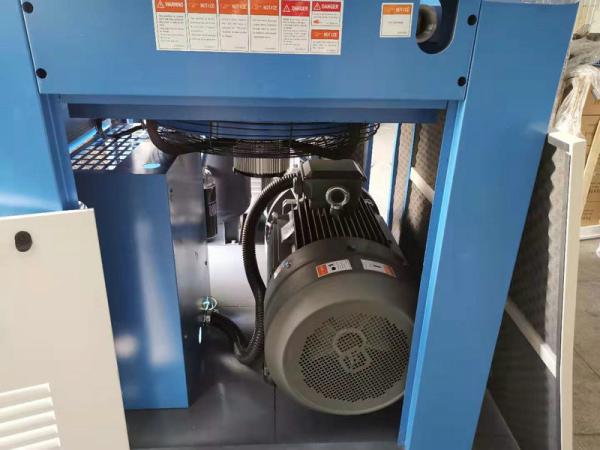

    MotorModelY2200L1-2
    Speedrpm2950
    Rated PowerKW30
    Service factor1.2
    Protection typeIP55
    Insulation classF
    Startup modeʏ-Δ starting
    VoltageV380(Special on request)
    FrequencyHz50(Special on request)
    Rated currentA56.9
    Weight of motorkg232

    30KW air compressor main spare parts


    No.ItemModelBrand
    30KWB
    0Max. working pressure0.81.01.31.5
    1Air end4030100091ROTORCOMP
    2Motor4020100052HEBEI/HUADA
    3PulleyCPT
    3.1Air end side
    3.2Motor side
    4BeltOPT
    5Intake Valve4070103001HONGXING
    6Minimum pressure valve4070202002HONGXING
    7Safety valve4070304002407030400340703040044070304005YUANTIAN
    8Air filter4080102002ROTORCOMP
    9Air filter element4080102015ROTORCOMP
    10Oil filter4080204001ROTORCOMP
    11Oil separator element4080306015ROTORCOMP
    12Oil separator tank4041201001ROTORCOMP
    13Cooler4060500034ROTORCOMP
    14Cooling fan assembly4060100031ROTORCOMP
    15Oil level sight glass4120400031ROTORCOMP
    16Solenoid valve4072000031HONGXING
    17Controller4101300131PLOT
    18Contactor-14100900021SCHNEIDER
    19Contactor-24100900081SCHNEIDER
    20Contactor-34100900091SCHNEIDER
    21Pressure sensor4100100011ROTORCOMP
    22Temperature sensor4100300031ROTORCOMP
    23Pressure gauge4100200011ROTORCOMP
    24
    25
    26
    27
    28
    29
    30




    Our anvantages


    High quality

    Reasonable price

    Strict delivery time

    Good after-sales service

    Profession maker for manyyears

    Strict quality control

    Streamline production makes each node be well controlled thus to guarantee more reliable quality.

    Re-create the industry revolution of the air compresssor ,

    Low after-sales maintenance cost and excellent promptness in the industry,

    We not only provide air systems, but also break the industry monopoly to provide the users with profits


    About US


    Shanghai Rotorcomp Screw Compressor Co., Ltd founded in 1999, our company was a manufacturer of piston air compressors from 1985-1999. After 2000 our company headquarters moved to the international metropolis Shanghai and focused on screw air compressors, pressure vessel, refrigeration dryer, adsorption dryer and air filters with the support of Rotorcomp Verdichter Gmbh in German.

    Shanghai Rotorcomp Screw Compressor Co. Ltd., Shanghai Ziqi Container Co.Ltd. have been cooperated with 2010 Beijing Nankou Railway Transit Machinery Co. Ltd., which belongs to China CNR Corporation Limited, as the strategic cooperation partner.

    The Beijing Nankou company has processing equipment more than 100 sets, including large-scale precision equipment 90 sets and imported equipment 70 sets. Such as Hardinge double-ended grinder, Toshiba horizontal machining center, BW CNC vertical and horizontal machining center, Holroyd rotor profile grinder and Zeiss 3D measuring machine.
